SURETHERM PRO 3X INDUCTION BEARING HEATER
Downloads
Description
SURETHERM, the New Generation Low Frequency, Energy Efficient Induction Heaters manufactured by TM Induction Heating in The Netherlands.

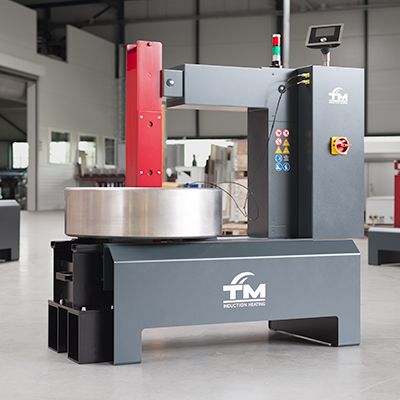

The SURETHERM PRO 3X is a Heavy Duty Induction Heater designed for use in large maintenance workshops and production areas, it can heat parts with a maximum weight of 800 kg, minimum bore of 45mm and a diameter of up to 1500 mm. The SURETHERM PRO 3X combines intuitive touchscreen interface, two sensor heating and 4 heating modes (Time, Ramp, 1 Sensor and 2 Sensor) delivering controlled tension free mounting for large Bearings, Gears, Couplings or other components. The SURETHERM PRO 3X can be mounted on an optional Trolley and supplied with a lifting device, making it one of the most mobile and ergonomic heavy duty Induction Heaters available.
Specifications:
Power - 25.2KVA
Voltage - 400V
Current - 63A
The SURETHERM PRO 3X comes complete with:
YOKES – 100X100mm
2 TEMPERATURE SENSORS – 1000mm
HEAT RESISTANT GLOVES (250°C)
GREASE
SURETHERM PRO 3X Options:
Yokes – 30x26mm, 40x38mm, 50x48mm, 60x60mm, 70x70mm, 80x80mm, 90x90mm
Long Length Temperature Sensors – 1500mm, 3000mm, 5000mm
Clamp Temperature Sensor
Easy Print Graph Software
Remote Control
Trolley
Component Lifting Device
400°C High Temperature Model
400°C Temperature Sensor
MAINTENANCE MADE - EASIER + FASTER+SAFER
