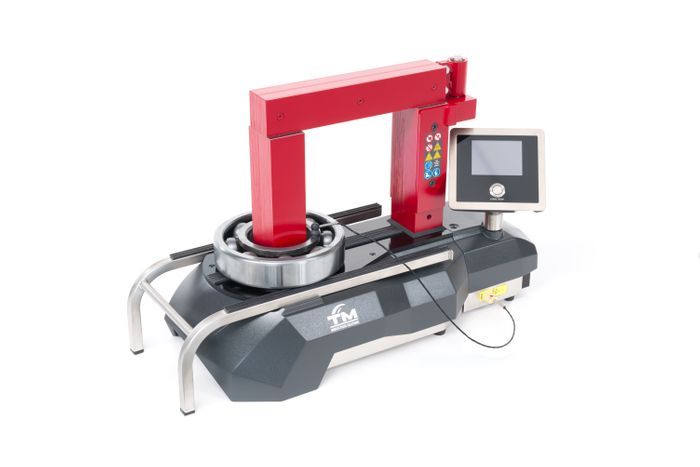

SURETHERM 20X INDUCTION BEARING HEATER
Downloads
Description
SURETHERM, the New Generation Low Frequency, Energy Efficient Induction Heaters manufactured by TM Induction Heating in The Netherlands.
The SURETHERM 20X is a Workshop Level Induction Heater Equipped with TM’s intuitive touchscreen interface and ergonomic pivoting yokes, making it a versatile addition to the SURETHERM-series. The pivoting yoke makes for easy workpiece handling as there is no need to lift the part and remove the yoke. Designed to be used for professional mounting of a wide range of parts, including Bearings, Gears, Hubs, Bushes & Sleeves with a maximum weight of 100 kg and maximum diameter of 500 mm (max. diameter 680mm when extension yokes are used).
Specifications:
Power - 3.7KVA
Voltage - 230V
Current - 15A
The SURETHERM 20X comes complete with:
YOKES - 14X14, 30X26 (P), 50X48 (P)
1 TEMPERATURE SENSOR – 500mm
HEAT RESISTANT GLOVES (250°C)
GREASE
(P = Pivoting Yoke)
SURETHERM 20X Options:
Yokes – 7X7X280mm, 10x10x280mm, 25x24x280mm (P)
Extension Yokes – 50x50x120mm
Easy Print Graph Software
Remote Control
Long Length Temperature Sensors – 1000mm, 1500mm, 3000mm, 5000mm
Clamp Temperature Sensor
400°C High Temperature Model
400°C Temperature Sensor
MAINTENANCE MADE - EASIER + FASTER+SAFER
