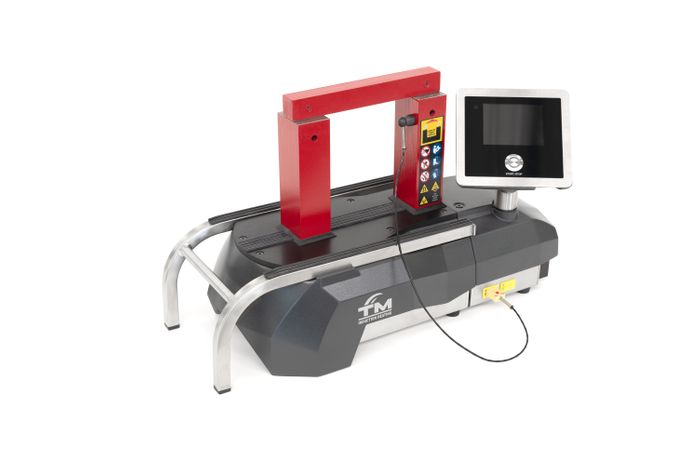

SURETHERM 10X INDUCTION BEARING HEATER
Downloads
Description
SURETHERM, the New Generation Low Frequency, Energy Efficient Induction Heaters manufactured by TM Induction Heating in The Netherlands.
The SURETHERM 10X may be small but proves to be a powerful induction heater showing great flexibility. Featuring an extendable work area, it is suitable for components such as Bearings, Gears, Hubs, Bushes & Sleeves, up to 50 kg and with a maximum diameter of 450mm when used with extension yokes. Easy to use and highly portable, especially when used in combination with the optional carrying case. The ideal heating tool to use on location.
Specifications:
Power - 3KVA
Voltage - 230V
Current - 13A
The SURETHERM 10X comes complete with:
YOKES - 10X10, 14X14, 25X24, 40X38,
1 TEMPERATURE SENSOR – 500mm
HEAT RESISTANT GLOVES (250°C)
GREASE
SURETHERM 10X Options:
Yokes – 7x7x200mm, 30x26x200mm
Extension Yokes – 40x50x75mm
2nd Temperature Sensor
Easy Print Graph Software
Remote Control
Sturdy Box (Carry Case)
Long Length Temperature Sensors – 1000mm, 1500mm, 3000mm, 5000mm
Clamp Temperature Sensor
400°C High Temperature Model
400°C Temperature Sensor
MAINTENANCE MADE - EASIER + FASTER+SAFER
